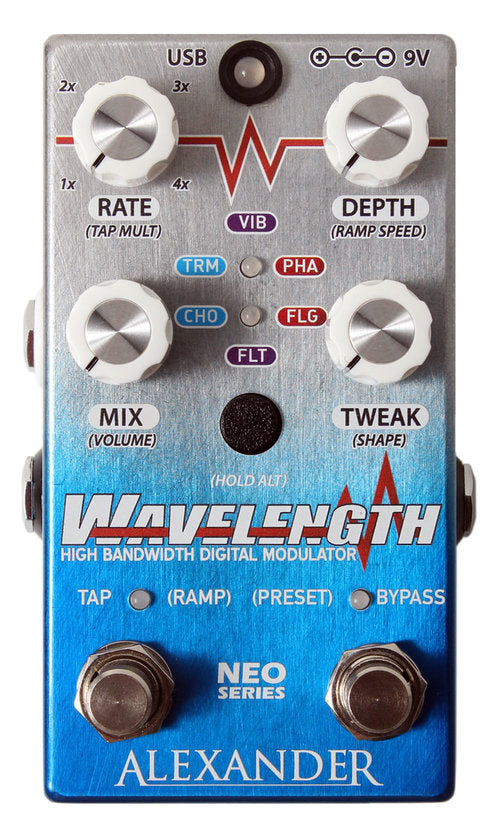

Alexander Pedals Wavelength High Bandwith Digital Modulator
More. That’s the best way we can describe the sounds and features of the Wavelength. We took everything from our Waveland Multi-Modulator and blew it up larger than life, while keeping it the exact same size.
We’ve added some welcome improvements like more modulation engines and tap tempo, and some cool surprises like selectable waveforms. It’s a true all-in-wonder for your modulation needs.
We crafted the Wavelength to handle a big range of modulation sounds and textures. It can take you from a throbbing square-wave tremolo to a slow ramping filter, then over to a rich doubled chorus and into a wicked flange - just by holding one footswitch! Its sounds are deep and rich, but its user interface is simple: just turn the knobs and let it rip.
The Wavelength features six distinct modulation engines, each with its own features and controls. Tap the center button to advance to the next modulation sound.
TRM Tremolo - this effect cycles your volume up and down for a cool rhythmic texture. Twist the Tweak control to morph between standard tremolo and harmonic vibrato. Don't forget you can use the Level control to bump up your volume and make up for any drop you might get from the effect!
CHO Chorus - smooth and clear chorus tones live here. Use the Tweak control to adjust the overall delay time of the effect. Low settings yield flange-like tones and higher settings result in a double-tracking effect.
PHA Phaser - eight-stage phase goodness, chewy and thick. Crank the Tweak control to add regeneration, deepening the phase shift effect.
FLG Flanger - ranges from subtle comb filtering to insane jet whoosh. Use the Tweak control to adjust the feedback for a sharper flange.
VIB Vibe - photocell and lamp style vibe effect. The Tweak knob adjusts the balance and symmetry of the shift stages and the effect gets more pronounced as you increase the control.
FLT Filter - resonant low-pass filter effect. Tweak controls the resonance of the filter. Be careful, this can self-oscillate at higher settings! Sounds killer with the Random waveform, ship ahoy!
Four built-in presets give you quadruple the tones in a single footprint. Add a MIDI controller for 16 presets.
Seamlessly morph between different knob settings on the fly using the built-in ramp footswitch, expression pedal, Neo Footswitch, or MIDI controller.
Connect an expression pedal, Neo Footswitch, or MIDI controller to this jack to add performance control to your pedal.
Accurate tap tempo control over the modulation engine. Tap multipliers of 1x - 4x are available. Hold the Tap footswitch to trigger the Neo Morph.
Every knob and setting on the pedal is controllable using MIDI. Connect using the MultiJack and our Neo Link or directly to any Disaster Area Gen3 controller.
Every Neo Series pedal features a USB port for MIDI control and firmware updates..
Dual output (mix signal on tip, dry signal on ring)
Input Impedance: 1M ohms
Output Impedance: 560 ohms
DC 9V only, 100mA or greater
Requires isolated DC power supply
4.7” x 2.6” x 1.5” H x W x D not including knobs
Six modulation engines
Four presets, expandable to 16 with a MIDI controller
MultiJack enables expression pedal, foot switch, or MIDI input
Neo Morph allows controlling all knobs from expression or MIDI
Tap Tempo with 1x, 2x, 3x, or 4x tap multipliers
Hold Tap switch to trigger Neo Morph
USB port for firmware updates and USB MIDI
