Boss DC-2W Waza Dimension C

Boss

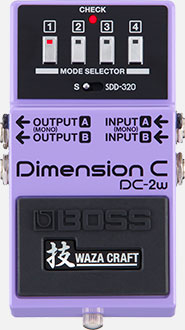

Boss DC-2W Waza Dimension C

The genuine BOSS and Roland Dimension effect is back, and it’s now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original ‘80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly sought-after by musicians and audio engineers, the Dimension’s unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.

Modes

S (Standard)
SDD-320

Nominal Input Level-20 dBuInput Impedance2.2 M ohms

Nominal Output Level-20 dBuOutput Impedance1 k ohm

Recommended Load Impedance10 k ohms or greater

BypassBuffered bypassControlsPedal switch
S/SDD-320 switch
MODE SELECTOR [1]--[4] buttonsIndicatorsCHECK indicator (Serves also as battery check indicator)
MODE SELECTOR [1]--[4] indicatorsConnectorsINPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jackPower SupplyAlkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw65 mAExpected battery life under continuous useAlkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA series
