Boss Katana Air

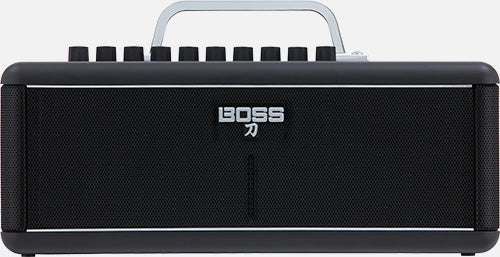

Meet the Katana-Air, the world’s first totally wireless guitar amplifier. Featuring new cutting-edge wireless guitar technology developed by BOSS, the Katana-Air gives you the freedom to jam and practice without hassling with guitar cables. And with support for battery operation, there’s no need to plug into AC either, so you can literally play anywhere!
Though compact in size, the Katana-Air is serious about sound quality. Equipped with pro amp tones and effects from the performance-class Katana amplifiers, this wireless wonder delivers premium guitar sounds for any style of music. To further extend the cable-free experience, you can wirelessly edit and organize sounds with a dedicated app and jam with songs streamed from your smartphone. With the innovative Katana-Air and your favorite axe, casual playing has never been more convenient and inspiring.
Rated Power Output30 W (15 W+15 W) (when using the AC adaptor)
20 W (10 W+10 W) (when using the Alkaline batteries)Nominal Input LevelINPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBuSpeakers7.5 cm (3 inches) x 2ControlsPOWER button
AMP TYPE knob
CH A button
CH B button
TAPConnectorsInput jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo miniature phone type
TRANSMITTER IN jack: Stereo 1/4-inch phone type
USB port: USB B type
DC IN jackPower SupplyAC adaptor (DC 13 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8Current Draw680 mAExpected battery life under continuous useAlkaline battery: Approximately 7 hours
Rechargeable Ni-MH battery: Approximately 10 hours
* When using batteries having a capacity of 2500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner’s manual
Leaflet USING THE UNIT SAFELY
Power cordSize and Weight (KATANA-AIR)Width350 mm
13-13/16 inchesDepth144 mm
5-11/16 inchesHeight181 mm
7-1/8 inchesWeight (excluding batteries)2.2 kg
4 lbs 14 ozSpecifications (Transmitter (WL-T))Nominal Input LevelINPUT: -10 dBu (1 M ohm)ControlPower buttonIndicatorBATTERYConnectorsInput plug: Stereo 1/4-inch phone type
DC IN 5 V port: USB Micro-B typePower SupplyRechargeable lithium-ion battery
Supplied from the DC IN 5 V portCurrent Draw47 mAExpected battery life under continuous useApproximately 12 hoursSize and Weight (Transmitter (WL-T))Width87 mm
3-7/16 inchesDepth22 mm
7/8 inchesHeight36 mm
1-7/16 inchesWeight43 g
2 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
