Boss PW-3 Wah

Boss

Sold out.

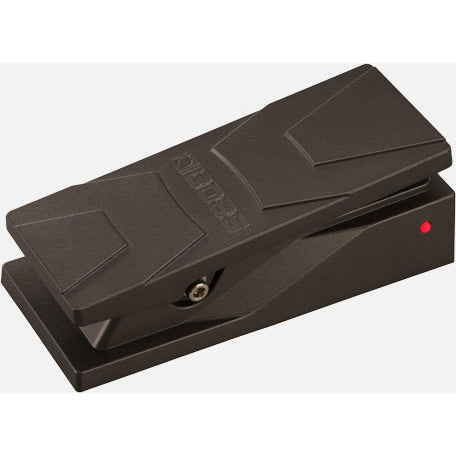

Boss PW-3 Wah

The all-analog PW-3 delivers pro wah tones in a rugged, space-saving design that conserves precious real estate on your pedalboard. Newly developed by BOSS, the PW-3’s Rich mode has a uniquely full wah voice that retains the low-end definition and fullness lost with typical wah circuits. Want a more traditional tone? Just flip the rear-panel switch to Vintage mode for that classic wah vibe.

Unlike other pedals that sacrifice feel and functionality when trimmed down in size, the PW-3 strikes the perfect balance between practicality and playability. Its die-cast aluminum chassis is solid and substantial underfoot, and the long, smooth pedal action is highly responsive and feels great. Another issue with downsized pedals is that it’s hard to see when the effect is on or off, because your foot blocks the view. The PW-3 solves this with status LEDs on each side of the pedal, making it much easier to see when the wah is activated.

Specifications
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Indicators
Dual indicator
Controls
Pedal
Tone switch
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
25 mA
Accessories
Owner's Manual
Alkaline battery (9 V, 6LR61)
Sheets (for adjusting the force required to turn the wah on/off)
Size and Weight
Width
80 mm
3-3/16 inches
Depth
192 mm
7-9/16 inches
Height
58 mm
2-5/16 inches
Weight
800 g
1 lb 13 oz
Size and Weight(Maximum height)
Width
80 mm
3-3/16 inches
Depth
192 mm
7-9/16 inches
Height
74 mm
2-15/16 inches
Weight
800 g
1 lb 13 oz
