Boss RC-10R Rhythm Loop Station

Boss

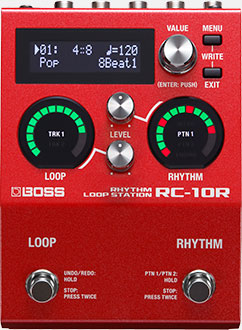

Boss RC-10R Rhythm Loop Station

Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.

SPECIFICATIONS (LOOPER)
Sampling Frequency
44.1 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Recording/Playback
Maximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
SPECIFICATIONS (RHYTHM)
Rhythm Type
280 types or greater
Rhythm Control
Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
Rhythm Kit
16 types
Maximum Polyphony
24 voices
Effect
Reverb (only for rhythm part)
SPECIFICATIONS (COMMON)
Memory
99
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +8 dBu
Input Impedance
INPUT A/MONO, B: 1 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +8 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass
Controls
RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT button
Display
16 characters x 2 lines LCD (with backlit)
Indicator
RHYTHM indicator, LOOP indicator
Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B type
Power Supply
AC adaptor
Current Draw
250 mA
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Rubber foot x 4
Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35
SIZE AND WEIGHT
Width
101 mm
4 inches
Depth
138 mm
5-7/16 inches
Height (excluding rubber foot)
63 mm
2-1/2 inches
Height (including rubber foot)
65 mm
2-9/16 inches
Weight (excluding AC adaptor)
620 g
1 lbs 6 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
