Darkglass Electronics Microtubes X7

Darkglass Electronics

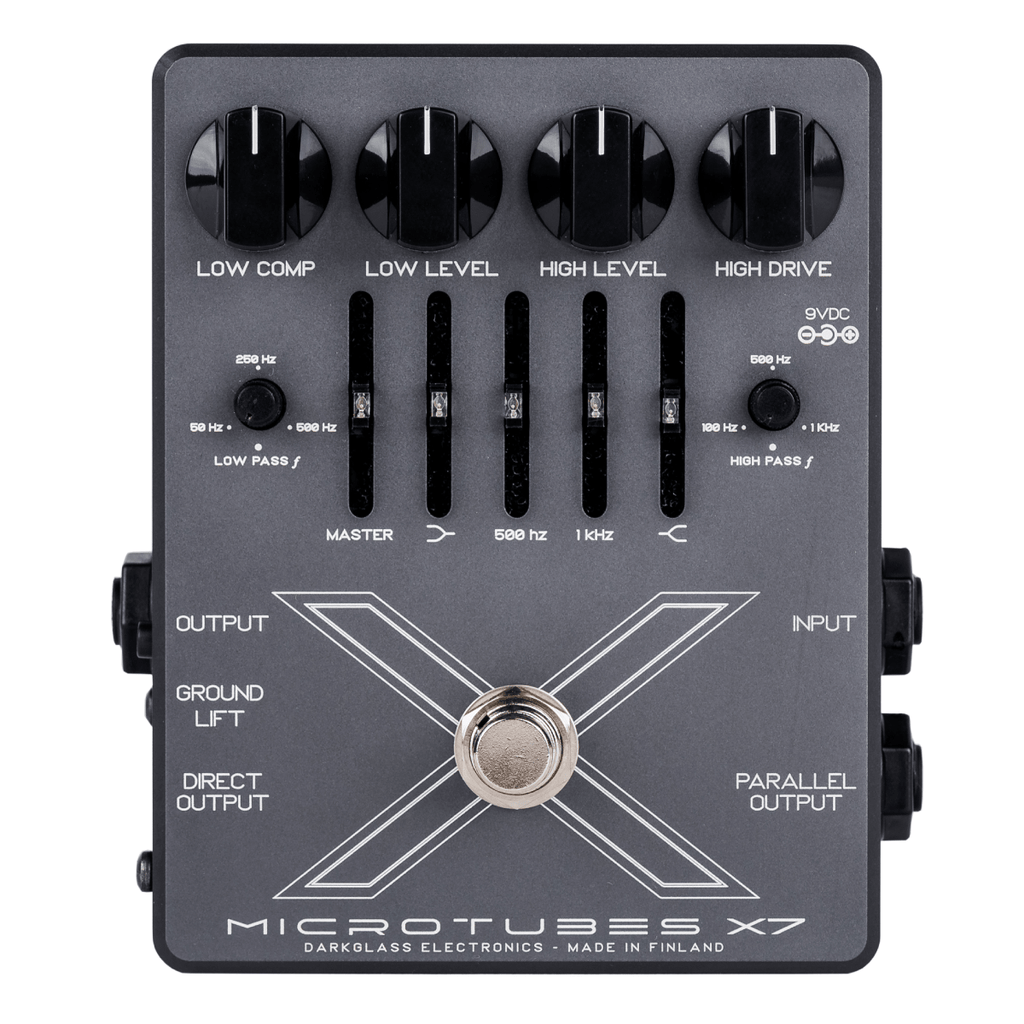

Darkglass Electronics Microtubes X7

The Microtubes X series brings the studio method producers have been using the years to cover the whole bass distortion spectrum: from articulate high gain to punchy mild overdrive, raw and gnarly fuzz and everything in between. You now have absolute control in constructing your vision of what the perfect bass distortion texture, definition, and size should have.

High Pass Frequency

Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.

High Drive

Sets the amount of distortion for the high pass side.

High Level

Sets the output volume of the distorted high-pass signal.

Low Pass Frequency

Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.

Low Comp

Sets the amount of compression for the low-pass signal.

Low Level

Sets the output volume of the low-pass signal.

Master

Sets the overall volume of the unit.

Low shelf

+-12dB @ 80 Hz

500 Hz

+-12dB

1 kHz

+-12dB

High shelf

+-12dB @ 5 kHz

Parallel Output

A passthrough for your input signal, useful for parallel processing.

Direct Output

A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.

DIMENSIONS

12×10.7 cm (4.72×4.21 in)

WARNING

The Microtubes X7 has a current draw of 70mA. Only use a regulated 9V-18V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
