Digitech Nautila Chorus/Flange


Sold out.

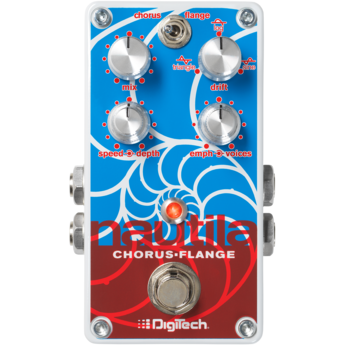

Digitech Nautila Chorus/Flange

Sing a song of stormy oceans and float upon the calming seas with the Nautila Chorus/Flanger. Create never before heard tidal swirls or soothing rhythmic waves with the Voice and Drift controls. These controls allow you to add up to eight chorus or four flanger voices and then blend and morph the waveforms in real-time with the Drift knob. Alter the modulation speed in real-time by holding down the momentary footswitch and then release to continue on your voyage through the currents.
Separate Speed, Depth, Emphasis, Voices and Mix controls shape your waves into clean curls or soupy foam. True Bypass, stereo inputs and outputs, silent switching, and rugged construction, make the Nautila as practical as it is creative.
The Nautila uses a 9VDC power supply to easily integrate into your existing pedalboard.
Included Items:

  • Nautila Chorus/Flange Pedal
  • StompLock™ - This unique new device fits snugly over the Nautila's control knobs to protect your finely-tuned settings from drops, bumps and kicks that inevitably take place when you perform.
  • Die cut Hook-and-loop Pedalboard Pad - This is a high-density mounting pad for stick and stay, semi-permanent mounting of the Nautila on pedalboards. It is also easily unmounted for pedalboard reconfiguration.
  • Online Warranty Registration Information Card
  • Features

    Dedicated Chorus and Flanger Effect Types:
    • CHORUS - 1 to 8 Voices with Tone (Emphasis)
    • FLANGE - 1 to 4 Voices with Regen (Emphasis)
    Slow to fast or fast to slow Foot-Switchable speeds Compact Size with Soft Click Vacuum-Style FootswitchTrue Stereo I/OTrue Bypass circuitry preserves your tone when the pedal is not in useHigh-Voltage operation for uncompromised signal qualityIncludes the following stage accessories:
    • Stomplock™ knob guard locks your tone in place and prevent tampering or accidental knob adjustments onstage
    • Custom-cut Hook and Loop Pedalboard Pad to secure your pedals to your pedalboard
    • Specifications

      Input Separate Left and Right ¼" Unbalanced (Tip-Sleeve)
      Input Impedance Effect on: >1 MΩ (stereo), >500 kΩ (mono); Effect off: True hardwire bypass
      Output Separate Left and Right ¼" Unbalanced (Tip-Sleeve)
      Output Impedance Effect on: 1 kΩ; Effect off: True hardwire bypass
      Controls Mix, Drift, Speed, Depth, Emphasis, Voices, Effect On/Off
      Switches Soft Click, Vacuum Style Footswitch; Effect Type Toggle Switch
      Power Requirements 9 VDC external power supply (required)
      Power Consumption 675 mW (< 75 mA @ 9 VDC)
      Current Draw 75 mA (typical at 9 VDC)
      Power Supply Model PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
      Power Supply Output 9 VDC 1.3 A
      Dimensions 4.40” (L) x 2.65” (W) x 2.0” (H); 11.18cm (L) x 6.73cm (W) x 5.08cm (H)
      Weight 1 lb; 0.453 kg
