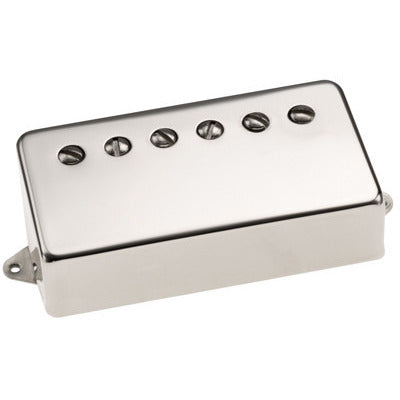

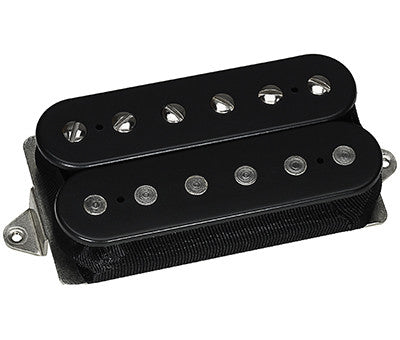

Dimarzio Illuminator™ Bridge DP257

Dimarzio

Designed for John Petrucci’s Music Man JP13™ guitar, the new Illuminator™ Neck and Bridge Models are the next generation in John’s signature pickups with DiMarzio. John says he looks for versatility in his pickups so that he’s able to span a multitude of different sounds within one guitar, going from massive overdrive, very tight, rhythmical and aggressive to  “more expressive, dynamic and very liquid” when he plays solos. They’re a bit bold — with more of the clarity and presence that John demands.

Recommended for:

Bridge

Tech Talk:

In keeping with John’s desire to increase the difference between neck and bridge pickup sounds, the Illuminator™ Bridge Model does three things: it increases midrange punch, bumps the highs up a notch, and tightens the lows. The sound jumps from the speakers when the strings are picked hard, and the low strings don’t get blurry with an overdriven amp.

Specs:

Wiring: 4 Conductor
Magnet: Ceramic
Output mV: 410
DC Resistance: 10.56 Kohm
Year of Introduction: 2013
Patent: 5908998

Tone Guide:

Treble: 5.0

Mid: 5.5

Bass: 5.5
