Egnater Goldsmith

Egnater

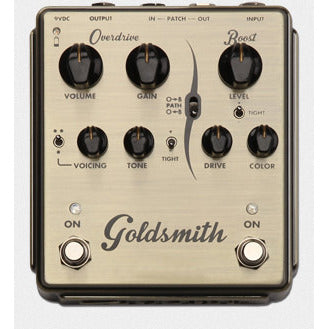

he Egnater Goldsmith is a 100% pure analog, two-in-one Overdrive and Boost
pedal. The Overdrive section boasts an extremely responsive tone control
along with Gain and Volume knobs to deliver a vast array of saturated
tones. Voicing allows you to accurately sculpt the critical midrange
frequencies. Egnater’s signature Tight switch provides control of the
essential low frequencies. The Boost section is versatile and intuitive.
Set the pedal for an ultra clean boost or dial in the perfect amount of
grit. Drive tapers the amount of gain in your boost while Color shapes
the overall tone. The Tight switch controls the overall low frequency
response. The Path switch selects the order of Overdrive and Boost.
Patch jacks on the rear panel allow you to separate the overdrive and
boost into two individual pedals.
Unique features: The Voicing knob
and switch allow the Goldsmith Overdrive to venture way beyond your
"normal" overdrive pedal. You now have control over the amount of
midrange cut or boost, and you can select between two different
frequencies for a really wide range of new tone options.

The Boost section even goes beyond just
"clean" boost, because sometimes you just want a little more. The Drive
control frees you to dial in just the right amount of "rock and roll"
grit.

Another really cool feature is the Path
switch. Because the Goldsmith is truly two individual pedals in one, we
felt it important to be able to put the two pedals in the order of your
choosing. With the Path switch, you can put the Boost before the
Overdrive (O<B) for even more footswitchable drive and compression.
With the Boost after the Overdrive (O>B), the boost becomes a
volume/solo boost for the Overdrive. But wait, with the additional Patch
jacks, you can even separate the Goldsmith into two totally separate
pedals and place either one anywhere is you pedal signal chain.

Our unique low battery monitor is one of the
hidden "gems" in our new Egnater pedals. Not only does the LED
indicator warn you of a low battery condition by flashing at an
increasing rate as the battery voltage drops, but if the battery becomes
too weak for proper operation, the pedal will automatically bypass
itself and all the lights flash to alert you. Our switching circuits are
"true bypass" using very high quality sealed relays so you will never
be surprised by a dead battery interrupting your performance again.

Overdrive Section

• Volume and Gain Controls

• Tone Control +/-8dB @ 2KHz Passive

• Tight Switch -6dB/octave rolloff at 110Hz

• Voicing Control with Frequency Select Switch

• Switch Down: +/-12dB @ 400Hz Active

• Switch Up: +/-12dB @ 1KHz Active


Boost Section

• Level Control

• Color Knob +/- 9dB @ 2.5kHZ Passive

• Tight Switch -6dB/octave rolloff at 110Hz

• Drive Controls Level of  Distortion

• Path Switch Selects Order of the Effects

• O > B = Overdrive Before Boost

• B > O = Boost Before Overdrive
