Electro Harmonix Slap-Back Echo Analog Delay Reissue
The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!
The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

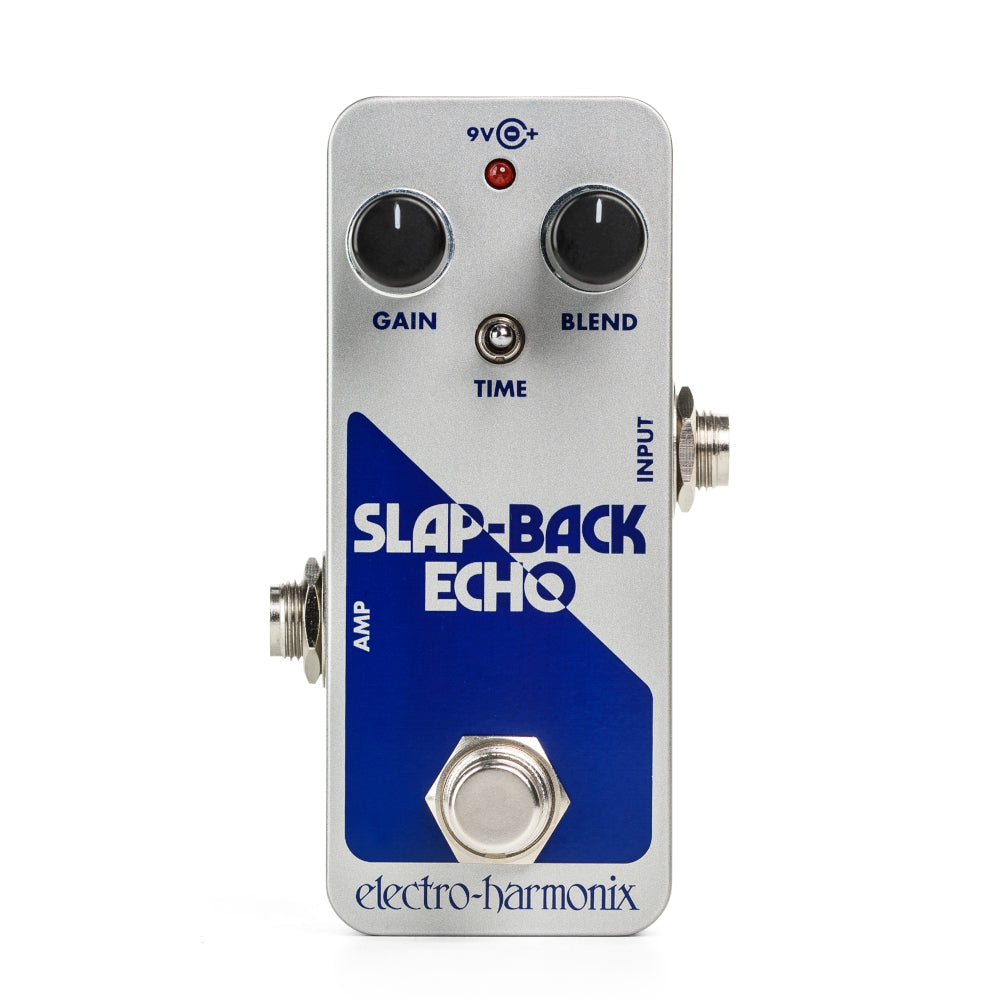

Housed in EHX’s Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.
Quick Specs
-Independent gain and blend knobs
-Time switch with 45ms, 65ms, and 100ms delay times
-Up to 20dB of boost
-True-Bypass
-Small, pico-sized chass
User Manual: https://www.ehx.com/slap-back-echo-manual.pdf
Shipping Weight: 1.3 lbs.
Shipping Dimensions (L x W x H): 6.25” x 5.65” x 3.2”
Unboxed Dimensions (L x W x H): 3.65" x 2.0" x 2.0"
