Maxon ROD880 Real Overdrive

Maxon

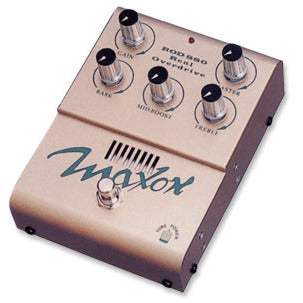

Maxon ROD880 Real Overdrive

A built-in real tube produces the Maxon ROD880's overdrive tone. It adds lots of sustain and is very responsive to pick attack.

The ROD880 is equipped with a switch for noise reduction to cut off unwanted noise.

An easily viewable LED indicates normal / effect mode.

Sample settings include high gain drive, gain boost, hard drive, volume drive, crunch, and metal drive.

A Maxon AC adapter is included.

Features and Controls

Gain: Controls gain level. Turn it clockwise for more gain.

Bass: Controls effected tone. Turn it clockwise for more lows.

Mid Boost: Controls effected tone. Turn it clockwise for more mids.

Treble: Controls effected tone. Turn it clockwise for more highs.

Master: Controls effected output volume. Turn it clockwise for more volume.

NR Threshold: Controls noise reduction threshold level. Turn it clockwise for more noise reduction.

SPECIFICATIONS

Input Impedance: 500K ohm
Input Jack: 1/4 inch standard phone jack
Output Impedance: less than 10k Ohm
Output Jack: 1/4 inch standard phone jack
Outputs: 1
Tone Control Range
(Bass)
(Mid-Boost)
(Treble):

100Hz 0 to 28dB (typical)
1kHz 0 to 25dB (typical)
3kHz 0 to 22dB (typical)
Noise Reduction Ratio: 1:2 or more (approx.)
Tube: selected dual triode tube
Power Supply: Maxon AC210N for 120VAC (included)
Power Consumption: 175 mA at 10VDC / 165 mA at 9VDC
Dimensions: 4.3" (W) x 6.3" (D) x 2.8" (H) -
110 mm (W) x 160 mm (D) x 72 mm (H)
Weight (with battery): 21 oz (600 grams)
Accessories: AC210 Adapter (for 120VAC), User's Manual, Warranty Card

Specifications subject to change without notice.
