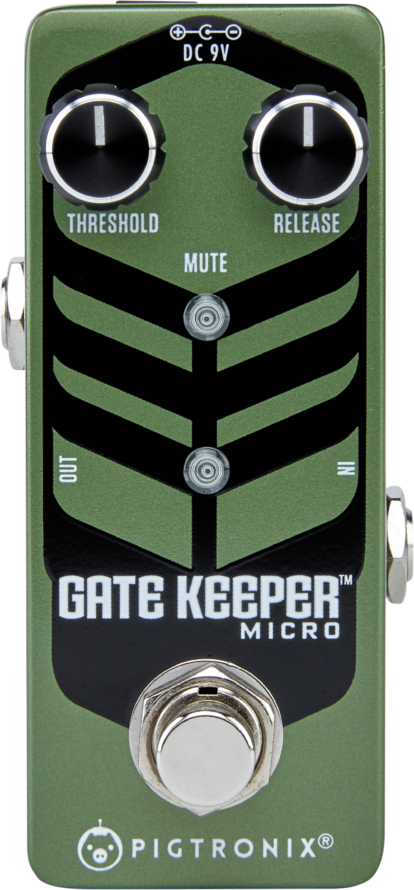

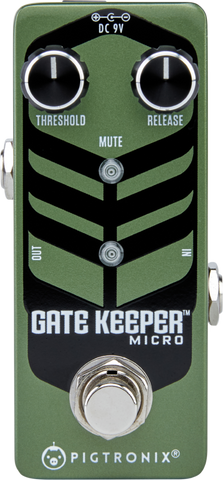

Pigtronix Gatekeeper Micro

Gatekeeper is a lightning fast, studio-quality noise gate that locks out unwanted noise from any rig. Featuring Threshold and Release knobs, Gatekeeper provides 100% attenuation with unprecedented response time and utilizes ultra high-speed J-FET circuitry to completely eliminate hum, hiss, buzz and any other intrusive non-musical sounds from your signal path. Its wide range Threshold control combines with exceptional headroom to deliver smooth transient response previously available only in rackmount, studio-oriented noise gate processors. The addition of the Release knob allows the user to control how long it takes gate to slam closed.

• MODEL NAME	Gatekeeper
  SKU	GKM
  FUNCTION	High-speed Noise Gate
  CATEGORY 1	Utility
  CATEGORY 2	-
  EXPRESSION	-
  BYPASS	True Bypass
  ELECTRONICS
  VOLTAGE	9VDC
  CURRENT DRAW	100mA
  INPUT IMPEDANCE	10M
  OUTPUT IMPEDANCE	150ohms
  BODY
  LENGTH (IN)	1.5
  WIDTH (IN)	3.75
  HEIGHT (IN)	1.75
  WEIGHT (LBS)	0.5
