Pigtronix Octava Micro

Pigtronix

Sold out.

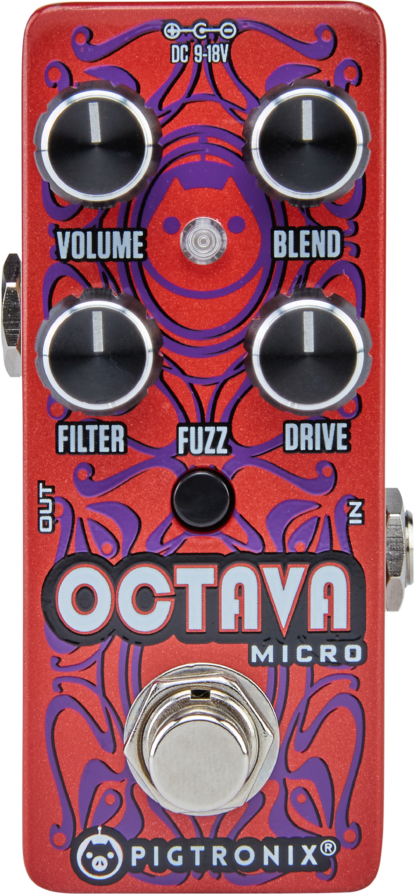

Pigtronix Octava Micro

Octava is an all-analog octave fuzz / frequency doubler featuring an on-board low pass Filter control that allows you to achieve singing octave up tones anywhere on the neck, without adjusting your guitar’s tone control. A front-end Drive and gushing Fuzz circuit add signal power and easily convert Octava to shoegazey fuzz pedal capable of producing devastating, full-wave rectified distortion. Use the Blend knob to mix the octave up effect on top of your dialed-in drive.

Volume: Sets the overall output volume.
Blend: Mixes in the octave-up effect.
Filter: A low-pass filter tone knob. Sets the cutoff frequency of the low pass filter on the input of the Octave circuit.
Drive: Mixes in warm front-end overdrive by increasing the gain of the J-FET preamp stage.
Fuzz: Activates the fuzz circuit.

Built with the theory of “do one thing and do it well” paired with the flexibility of more diverse effects units, the Octava transitions seamlessly between a singing octave-up to an overflowing fuzz, and every blended tone between.

MODEL NAME
Octava
SKU
OCT
FUNCTION
Analog Octave Fuzz
CATEGORY 1
Distortion
CATEGORY 2
-
EXPRESSION
-
BYPASS
True Bypass

ELECTRONICS

VOLTAGE
9-18VDC
CURRENT DRAW
100mA
INPUT IMPEDANCE
2.2M
OUTPUT IMPEDANCE
150ohms

BODY

LENGTH (IN)
1.5
WIDTH (IN)
3.75
HEIGHT (IN)
1.75
WEIGHT (LBS)
0.5
