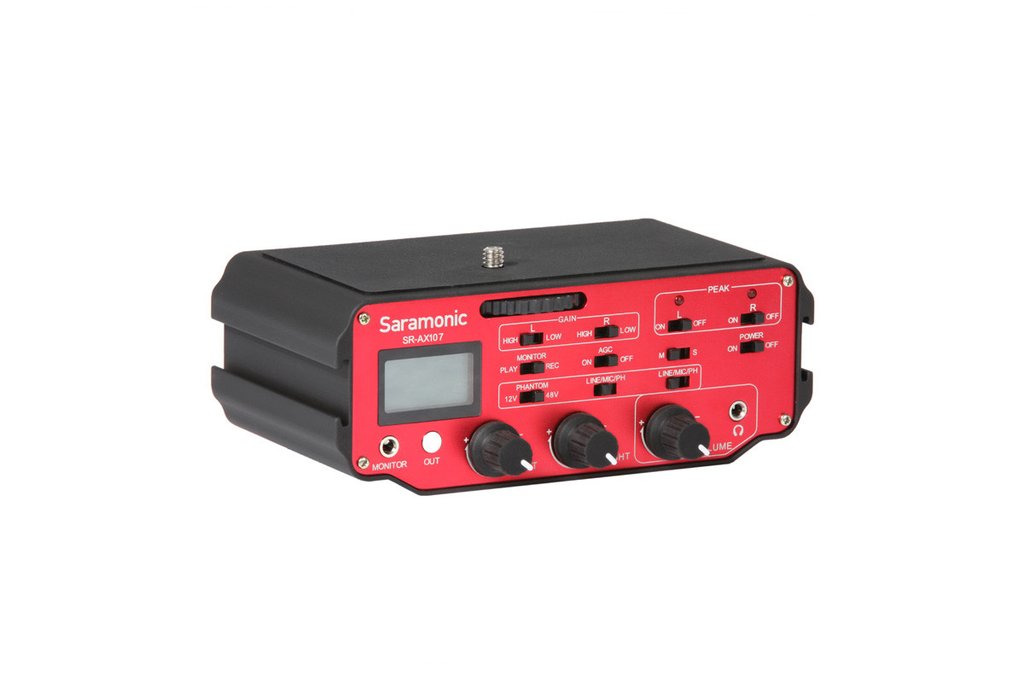

Saramonic SR-AX107 Two-Ch XLR Audio Adapter (Isolation Transformer, Preamplifiers, Phantom Power)
The SARAMONIC SR-AX107 is a 2-channel XLR audio adapter featuring preamplifiers and phantom power. This audio adapter is ideal for any DSLR camera with a built-in microphone jack.
The SR-AX107 allows you to connect professional condenser microphones, wireless microphones, digital recorders, external audio mixers, sound boards and more to your DSLR camera or camcorder via two balanced XLR inputs.
The SR-AX107 is designed to save hours in post-production. On-board level meter allows you to verify the proper input levels in real time, while the output signal can be adjusted by the level controls for optimum recording. The dual headphone jacks allow you monitor the audio from the adapter at the input and output points.
The Saramonic SR-AX107 features an Isolation Transformer which provides a completely noise free and pure sound, and a built in Auto Gain Control switch allows you to turn off auto gain to reduce noise during quiet moments.
Two balanced XLR inputs
One monitor input jacks
One stereo 1/8" (3.5 mm) mini-jack output
Left and Right control knobs allows you to adjust the signal of each channel to the optimum recording levels
Volume Control knob adjusts the headphone volume level
Select mono or stereo output mode
Select LINE, MIC or Phantom levels
Optional off, 12 or 48 volt phantom power for condenser microphones that require phantom power to operate
Indicates the sound level in dB for each channel
The LED signal indicators flash red for overload
Selects LOW for unity gain or HIGH for +20dB boost in sound level
Headphone jack to monitor the audio from microphones or camera
Auto Gain Control will increase the gain to maximum level, the AGC Disable function reduces the hiss when the camera is recording during quiet moments
Provides a completely noise free and pure sound
Dual-mode grounding switch
Feature isolated volume controls to allow you to monitor the audio from the adapter at the input and output points
-3 dBu/ +14 dBu
Nominal MIC levels
20 Hz to 20 kHz (+/- 0.5 dB)
Less than 0.01% @ 1kHz, -30dBu input
85 dB @ 1 Khz, -30 dBu input
0 dB/ 20 dB
Dual regulated 12 or 48 volt power supplies
Current to 14 mA (direct short)
-18 to +3 dB in 3 dB increments
6"x 3.75"x 1.75"(L x W x H)
(152 mm x 95 mm x 44 mm)
18 oz (0.51 kg)
