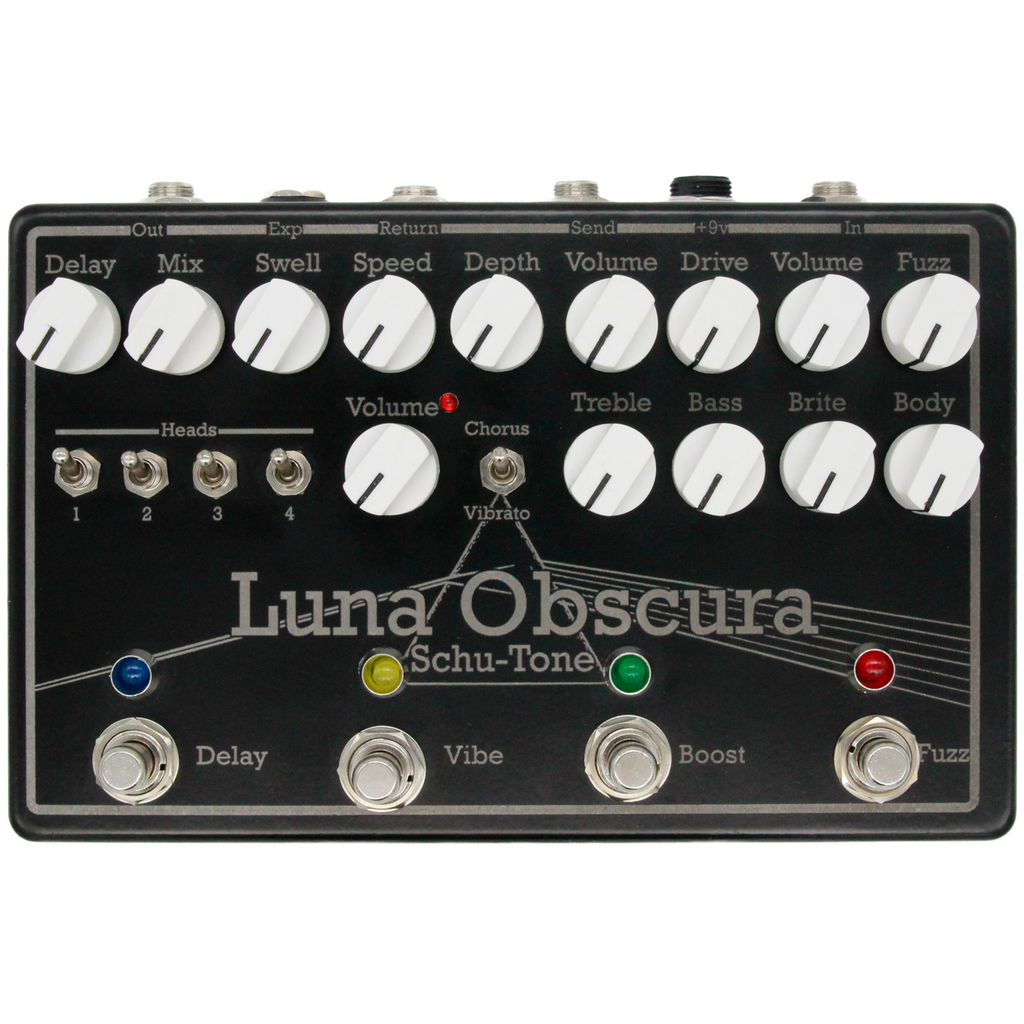

Schu-Tone Luna Obscura
Come to the dark side with the Schu-Tone Luna Obscura! The Luna Obscura is an all-in-one pedalboard in a single pedal. Based on David Gilmour's rig from the Dark Side of the Moon era, this pedal has four separate circuits on-board:
-The Fuzz circuit is based on a silicon fuzz face that is perfect for nailing searing lead tones. Bright and body controls give you additional flexibility over the tonal balance you get from the fuzz.
-The Boost circuit is based on the orange Powerbooster. The drive and volume controls work together to give you amazing overdrive sounds and tons of volume boost on tap. What makes the boost special is the treble and bass controls. The EQ section allows you to cut and boost the high and low end, allowing you to shape the sound to what you need.
-The Vibe is a photocell and bulb based Uni-Vibe circuit. Swirling modulation is at your fingertips as you move the speed and depth controls. From light modulation to seasick movement, it is all available to you. A volume control for the Vibe makes sure that you will not experience any volume drop when you kick the vibe on.
-The Delay is a 4-head rhythmic delay based on the Binson Echorec unit. Unlike the Binson, this delay is capable of up to 800ms of delay. Mix and swell controls let you dial in how prominent the delay is in the mix and sets the amount of repeats you hear. What is unique about this delay is the 4 separate heads. Have one head active for single delays, or turn on multiple heads to create rhythmic delay patterns.
If you are looking for a simple grab and go pedalboard solution, or are just a massive fan of Dark Side of the Moon, the Schu-Tone Luna Obscura is the pedal for you!
-Volume: Sets the output level.
-Fuzz: Controls amount of fuzziness of signal.
-Brite: Adjusts the high-end
-Body: Controls the amount of thickness
-Volume: Sets the overall volume of boost.
-Drive: Controls the amount of gain in the boost.
-Treble: Cuts or boosts high end.
-Bass: Cuts or boosts low end.
-Speed: Sets the speed.
-Depth: Controls the intensity.
-Volume: Sets overall level of vibe signal.
-Chorus/Vibrato switch: Adds dry signal for chorus mode, removes for vibe.
-Delay: Sets delay time.
-Mix: Controls amount of delay signal.
-Swell: Adjusts amount of repeats.
-Heads switches: Adds delay heads. 1 is shortest, 4 is longest. Use any combination of heads.
-Hand built in the USA.
-True bypass with soft-touch relay
-Circuit order: Input > Fuzz > Boost > (Effects Loop) > Vibe > Delay > Output
-EXP jack for controlling the Vibe's speed. Recommended EXP pedals are Moog EP-3 and On-Stage KEP100.
-Standard 9v DC (center-negative) power. No power supply included. No battery connection.
-335mA current draw
-7.4" x 5" x 2.2" (LxWxH)
