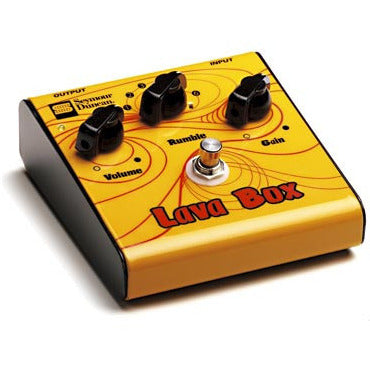

Seymour Duncan Lava Box SFX-05 Distortion Pedal

Seymour Duncan

Sold out.


The Seymour Duncan Lava Box™ is a Mosfet distortion/overdrive with incredible dynamic range. The Lava Box is not your ordinary distortion/overdrive pedal. It actually reacts more like a great amp than a stompbox, with the depth and dynamics that give well-made amps so much character. Even at the highest gain settings, you can turn down your guitar’s volume control and the Lava Box will clean up beautifully. Onstage, you can set the Lava Box for a loud lead tone and simply use your guitar’s volume control to get your clean and crunch tones—all without switching channels or kicking in other effects. In the studio, you can explore the huge array of tones that are available with the intuitive controls, creating special-effect thin tones or spooky dark sounds that are perfect for layering and overdubs.

The six-position “Rumble” bass roll-off control changes the sonic character of the Lava Box’s distortion for a huge range of tones, from bright and spanky to deep and warm. Whether you have the thinnest single-coil in the bridge of your guitar or the woolliest humbucker in the neck, there is a Rumble setting that’s perfect for it.



  • Gain Range: 33dB-57dB
  • Input Impedance: 12KΩ
  • Output Impedance: 2.5KΩ
  • Max Output before Saturation: 2.9Vrms
  • S/N Ratio: 113dB referred to the input with 20KΩ source impedance
  • THD @ 1Vrms out @ 1 KHz with maximum gain: 0.38%
  • THD @ 1Vrms out @ 1 KHz with minimum gain: 0.065%
  • Type of Circuitry: 2 Stage Mosfet Input with CMOS Class A Output
  • Power: DC 9-12v; Battery or Regulated DC Adapter
  • Current Consumption: 4.0 mA Max
  • Dimensions: 4.62” Wide x 5.10” Deep x 2.20” Tall
  • Weight: 1.6 LBs
  • Chassis Material: 16-Gauge Steel
  • Rumble Control Low Frequency Roll Offs: 620Hz; 530Hz; 330Hz;
  • 300Hz; 210Hz; 160Hz.
