Riot is a versatile high-gain distortion pedal with the sonic characteristics and touch sensitivity of a high quality 100 watt tube amplifier. Riot will transform a clean amp into an authoritative rock tone that inspires all of your favorite riffs.

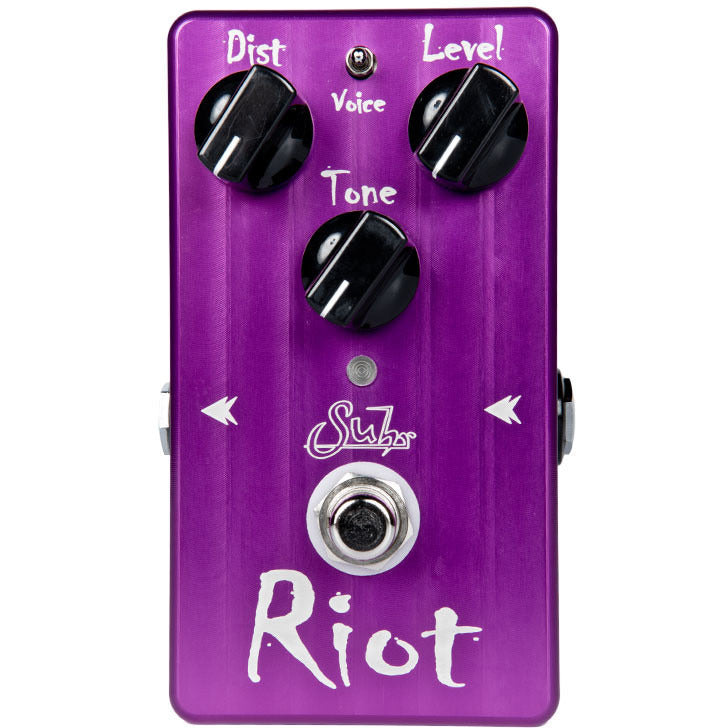

Riot features an easy to tweak layout which includes Gain, Level, Tone and a three position Voicing switch.
Dist: Adjusts the amount of gain added to your tone, taking you from classic crunch to high-gain heaven.
Level: Adjusts the output of the pedal. Riot provides enough level to push the front end of any tube amp into natural overdrive.
Tone: Shapes the overall tonal response of the pedal, from smooth and warm to cutting lead tones.
Voicing Switch (three positions):
UNIQUE FEATURESRiot includes a number of unique features: True Bypass via a relay, Fx Link remote switching, and Low Battery Monitor.
Input Impedance: 1M ohm
Output Impedance: 600 ohm
Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 4V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Reverse Battery Protection: yes
Over Voltage Protection: yes
Current Consumption: 8mA
Estimated Battery Life: 75 – 100 hours continuous use
Dimensions: 4.875” Width x 3.875” Depth x 1.375” Height
Weight: One pound
FX Link Connector: 1/8” stereo
FX Link max Voltage: 3.3Vdc
Shield → Tip: Activate Mid Boost
Shield → Ring: Activate Boost
ROHS Compliant: Yes
Agency Approvals: N/A
