Boss MD-200 Modulation Pedal

Boss

Sold out.

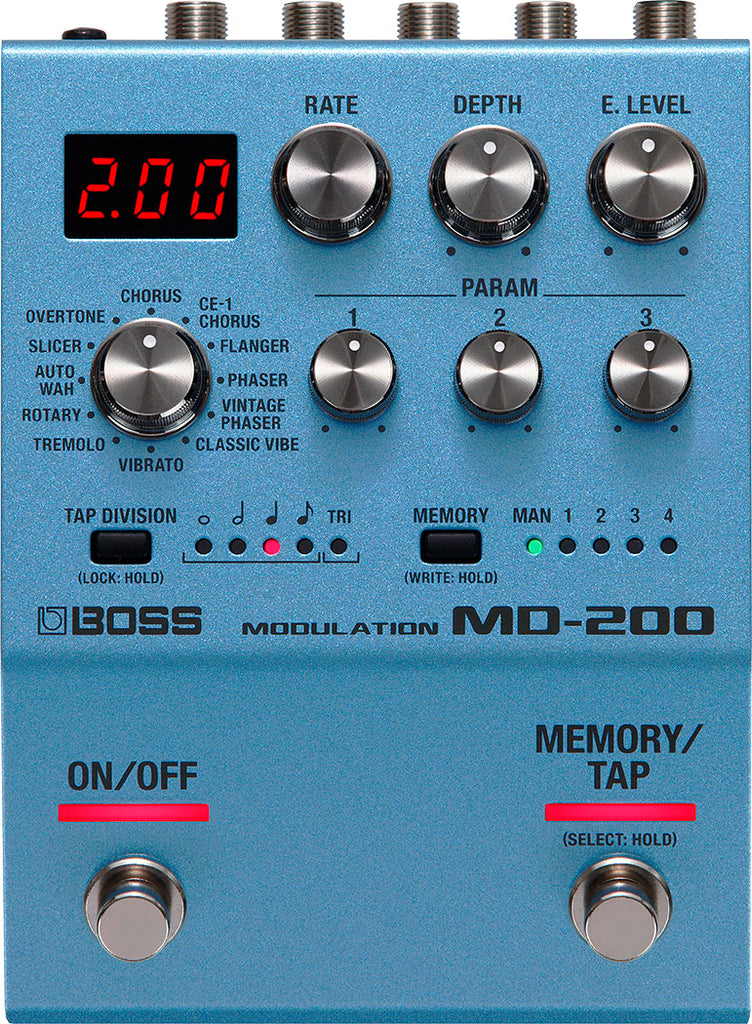

Boss MD-200 Modulation Pedal

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, plus support for additional control via external switches, an expression pedal, or MIDI.

Outfitted with algorithms from the flagship MD-500, the MD-200 Modulation delivers an array of world-class effects in one small, convenient pedal. Twelve different modes provide every mod sound you need and more, and each includes customized controls that unlock deep tone shaping right from the panel. And with the powerful insert function, it’s simple to patch in drive pedals and other effects for selectable pre or post processing.

SPECIFICATIONS
Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Modes
12 modes
CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONE
Memory
4 + Manual
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +7 dBu
Input Impedance
INPUT A/MONO, B: 2 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +7 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass
Controls
ON/OFF switch, MEMORY/TAP switch
MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob
TAP DIVISION button, MEMORY button
Display
7 segments, 3 characters (LED)
Indicator
TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators
Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw
225 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35
SIZE AND WEIGHT
Width
101 mm
4 inches
Depth
138 mm
5-7/16 inches
Height
63 mm
2-1/2 inches
Height (including rubber foot)
65 mm
2-9/16 inches
Weight
610 g
1 lb 6 oz
Weight (including battery)
680 g
1 lb 8 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
