Boss NS-1X Noise Surpressor

Boss

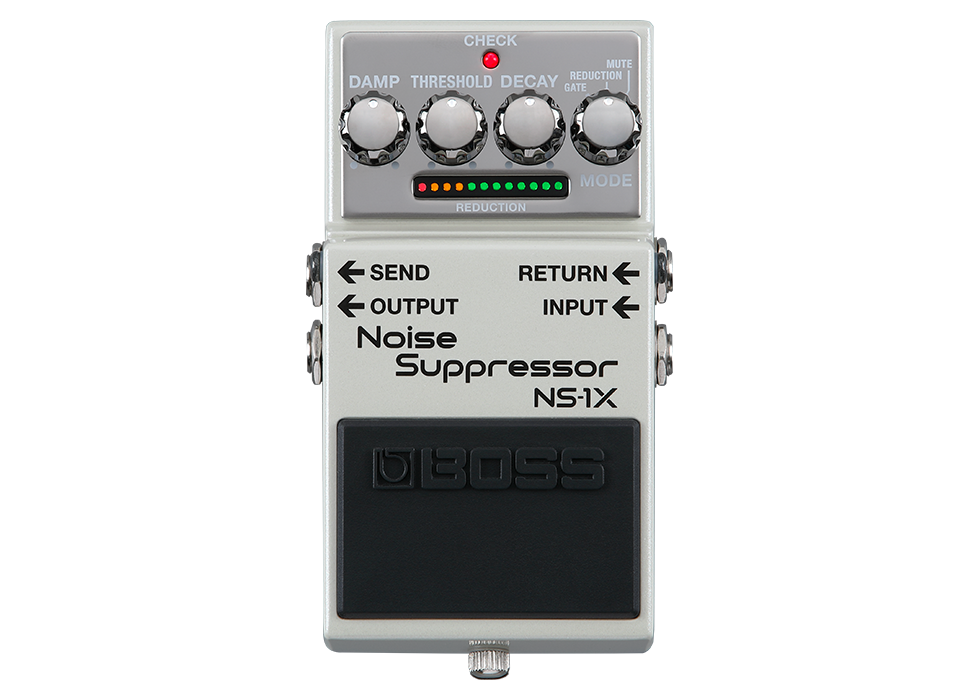

Boss NS-1X Noise Surpressor

Powered by advanced BOSS MDP technology, the NS-1X intelligently silences noise without affecting the natural tone and playing feel of your guitar or bass. Reduction mode keeps your rig quiet in any general playing setup, while Gate mode provides ultra-fast performance to ensure that precision, high-gain riffs remain sharp and distinct. Versatile and easy to use, the NS-1X is an essential tool for defeating noise issues while practicing, performing, and recording.

  • Next-generation noise suppressor and gate for guitar, bass, and other electronic musical instruments
  • Intelligent BOSS MDP technology eliminates noise with no impact on playing feel or response
  • Intuitive operation with Threshold, Decay, and Damp knobs
  • Reduction mode for general noise suppression applications
  • Gate mode provides ultra-fast noise elimination for tapping, sweep picking, and heavy rhythm styles that rely on high-gain tones
  • Mute mode for silencing the instrument signal when the pedal switch is engaged (the pedal operates in user-selectable Reduction or Gate mode when the switch is off)
  • Reduction indicator that dynamically displays the current noise suppression status
  • Send/return loop for optimized noise elimination with overdrives, distortions, and other noise-producing pedals
  • DC Out for distributing power to other pedals (requires optional PSA adaptor and PCS-20A parallel cable)
  • BOSS five-year warranty

SPECIFICATIONSSampling Frequency48 kHzAD Conversion24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.DA Conversion32 bitsProcessing32-bit floating pointModes3 modes
GATE
REDUCTION
MUTENominal Input LevelINPUT, RETURN: -20 dBuMaximum Input LevelINPUT, RETURN: +7 dBuInput ImpedanceINPUT, RETURN: 1 M ohmNominal Output LevelOUTPUT, SEND: -20 dBuMaximum Output LevelOUTPUT, SEND: +7 dBuOutput ImpedanceOUTPUT, SEND: 1 k ohmRecommended Load ImpedanceOUTPUT, SEND: 10 k ohms or greaterBypassBuffered bypassControlsMODE knob
DECAY knob
THRESHOLD knob
DAMP knob
Pedal switchIndicatorCHECK indicator (Serves also as battery check indicator)
REDUCTION indicatorConnectorsINPUT jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
DC IN jack
DC OUT jackPower SupplyAlkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw60 mAExpected battery life under continuous useAlkaline: Approx. 6.5 hours
* These figures will vary depending on the actual conditions of use.AccessoriesLeaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Dry battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA seriesSIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)460 g
1 lb 0.3 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
