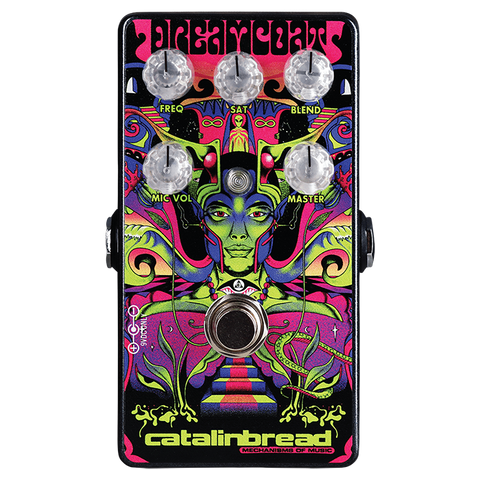

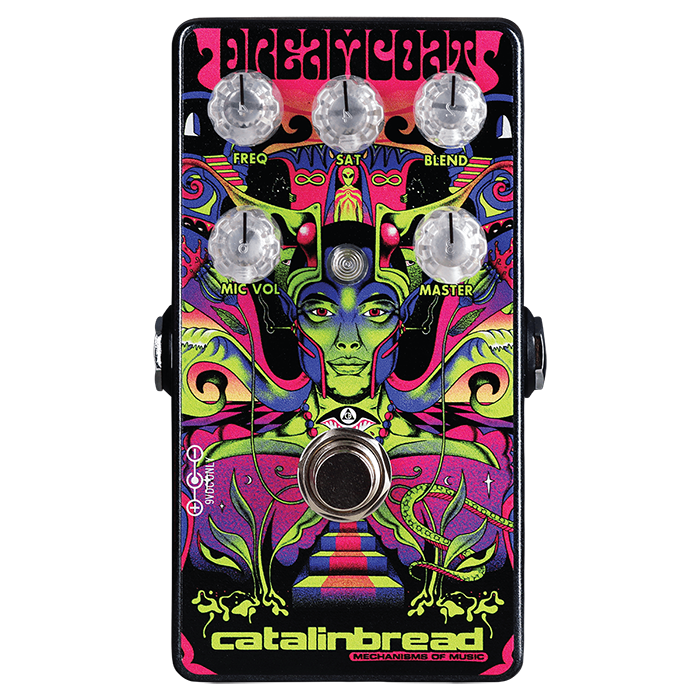

Catalinbread Dreamcoat
What began as an exploration of a specific '60s and '70s classic rock tone, evolved into a multidimensional gain machine capable of anything between unruly sputtery fuzz and classic rock chime. This is not meant to make you sound like a classic rock god, it is meant to inspire you from using some of the same tools they used that would otherwise be inaccessible in pedal form. The heart and soul of the Dreamcoat is a near-exact recreation of the preamp circuit from the Aiwa TP-1011 reel-to-reel deck that can be found in '60s and '70s classic rock recordings. All of the functionality of that unit is present, from sparkling cleans to powerful crunch and glassy leads, but the “Sat” control gives you an extra layer of grunt, allowing the Dreamcoat to range between near-dry tonal indifference to complete “melting-amp” Neil Young-esque tweed sounds. A certain classic rock sound wasn’t just a tape deck, though. Some players installed a passive inductor-based frequency “booster” into their guitars that cut both sides of the spectrum around the resonant frequency of their guitar, giving the appearance of frequency boost. To that end, we’ve added a frequency booster circuit that doesn’t cut anything, giving you a richer tone with a little oomph where it counts. To top it all off, we’ve included a clean blend circuit that begins after the frequency boost and ends after the tape preamp, so you can EQ the sum of your clean tone and dirt, all while preserving your pick attack and presence. The whole shebang runs at 20V, just a hair higher than the original Aiwa, expanding its capabilities and delivering tons of headroom.
Current draw: 44mA
Input impedance: >1MΩ
Output impedance: <5KΩ
Dimensions: 4.33” X 2.36” X 1.93”
Weight: 0.4 lbs
The Dreamcoat requires a 9V power supply center-negative and draws 44mA. Any more current than that is A-OK, but you can’t exceed 9V without letting the smoke out. Bad things will happen, including but not limited to shouting expletives and more importantly, voiding your warranty. True bypass.
