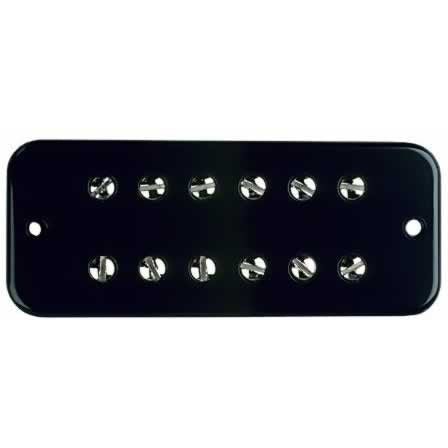

The Tone Zone P-90™ is a high-output, humbucking soapbar pickup with the same sound and power as the Tone Zone® humbucker. Like the original Tone Zone®, it is designed for the bridge position and comes standard with 4-conductor wiring enabling series/parallel humbucking or split-coil modes.
Bridge position, solid-body guitars with soapbar pickup cavities.
Because of the plastic cover, soapbar pickups usually can’t be adjusted quite as close to the strings as standard humbuckers, and by comparison with full-size humbuckers, soapbars have a slightly narrower magnetic window to "see" the strings. DiMarzio has taken both factors into account by slightly increasing power and broadening the magnetic field around the coils to allow the Tone Zone P-90™ to sound as great as the original Tone Zone®.
Cover Dimensions 3.38" x 1.38" x 0.75" (86 x 35 x 19 mm)
Wiring Standard four conductor
Output 385 mV
DC Resistance 16.77 Kohm
Year of introduction 2004
Patent # 4,501,185 & 5,908,998
