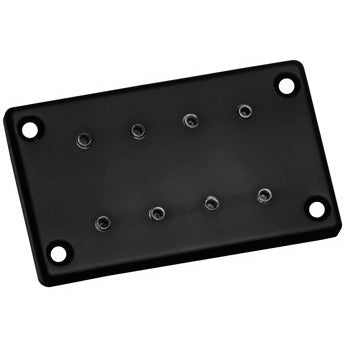

Dimarzio Will Power™ Neck DP145


Billy Sheehan has used the original DiMarzio Model P® and Model One™ bass pickups for many years. Because of the demands Billy puts on his system, we made several modifications to existing models in order to deliver even more of what he wanted. These are the exact pickups Billy uses in his signature Yamaha® basses. The Will Power™ Neck Model is very deep-sounding with great low-end definition. Its dimensions are the same as the Model One™, but it’s a little louder and fatter-sounding, and pole piece spacing is slightly wider for better string alignment with long-scale basses.The Will Power™ middle pickup is a P-style pickup with tremendous punch and mid-range power. The overall sound is similar to the DiMarzio Model P®, but a broader magnetic field lends more impact to individual notes and harmonic overtones. Both pickups are humbucking with 4-conductor wiring.

Recommended For

Neck position, medium string spacing.

Tech Talk

Warm, full tone, no mud. For maximum high-end response, try 500K controls. For even brighter and cleaner sound, try switching the coils from series to parallel: the volume drops a bit, but the midrange really opens up and acquires a more acoustic quality.


Wiring: 4 Conductor
Magnet: Ceramic
Output mV: 200
DC Resistance: 12.21 Kohm
Year of Introduction: 1995
Patent: n/a

Tone Guide

Treble: 7.0
Mid: 5.0
Bass: 7.0
