EMG created the Extended Series Bass Pickups to satisfy extreme bass string spacing requirements while delivering all the responsiveness and quietness that EMG is known for.

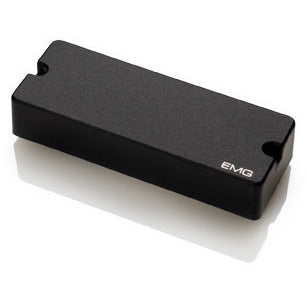

The EMG-40DC (Dual Coil) employs parallel placed coils (ceramic loaded) to produce a deep low end, and yet maintain clarity. All of the DC Models are beefy, brilliant, and have more than enough output. The DC also uses the ultra low-noise preamp designed for the EMG- JV model. We recommend an 18 Volt supply for extended head room. This pickup uses a 40 Extended housing that is 4 inches (102mm).
Package Includes: EMG's exclusive Quik-Connect™ cable, prewired solid shaft volume/tone control set, output jack, battery clip set, and adjustment screws.
|Resonant Frequency (Khz)||4.3|
|RMS Output Voltage||1.4|
|Peak Output Voltage||2.0|
|Output Noise (dBV)||-115|
|Output Impedance (Kohm)||2|
|Current @ 9V (Microamps)||220|
|Battery Life (Hours)||1200|
|Max Supply Voltage (VDC)||27|
|Max String Width (Inches)||3.125|
