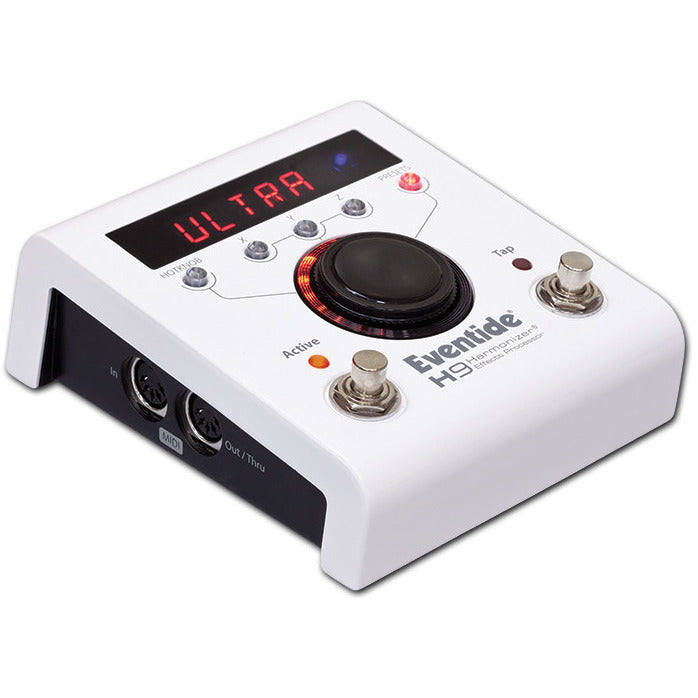

Eventide H9
Eventide
Sold out.
| Input impedance | 600K ohms (mono or stereo) |
| Output Impedance | 470 ohms |
| Recommended Load Impedance | 10K ohms or greater |
| Connectors | |
|---|---|
| Input 1 (mono) | ¼ inch mono phone jack |
| Input 2 | ¼ inch mono phone jack |
| Output 1 (mono) | ¼ inch mono phone jack |
| Output 2 | ¼ inch mono phone jack |
| Expression Pedal | ¼ inch stereo phone jack |
| Mini USB | Use 2.0 cables only |
| MIDI In | Five pin DIN (Female) |
| MIDI Out/Thru | Five pin DIN (Female) |
| AC Adapter Jack |
Power Supply included (see below) |
| Physical | |
|---|---|
| Power | 9 VDC, 500 mA, center pin (+) |
| Dimensions | English: 5.25" (H) x 4.65" (W) x 1.96" (D) Metric: 133 (H) x 118 (W) x 50 (D) mm |
| Weight | 1.53 lbs, 0.7kG |
Factory Presets List
|
PRESET |
ALGORITHM |
|
1 ULTRATAP |
ULTRATAP |
|
2 BALLERINA |
H910 H949 |
|
3 WARMTH |
CHORUS |
|
4 LENNON SLAP |
TAPE ECHO |
|
5 1984PANAMA |
H910 H949 |
|
6 EARTH HALL |
HALL |
|
7 I WALK ALONE |
TREMOLOPAN |
|
8 STREETS |
VINTAGE DELAY |
|
9 SHIMMER |
SHIMMER |
|
10 BATMAN |
ULTRATAP |
|
11 CLASSIC CRYSTALS |
CRYSTALS |
|
12 POLYMODELICIOUS |
CHORUS |
|
13 FIBONACCI TAPE |
TAPE ECHO |
|
14 WOMENINLOVE |
H910 H949 |
|
15 KUBRIX |
HALL |
|
16 TUMBLEWEED TREM |
TREMOLOPAN |
|
17 AMBIENT VINTAGE |
VINTAGE DELAY |
|
18 MOUNTAINS |
SHIMMER |
|
19 BOUNCING BALL |
ULTRATAP |
|
20 1984LEGS |
H910 H949 |
|
21 SPINNING |
CHORUS |
|
22 TAPE FOR VOCALS |
TAPE ECHO |
|
23 3 OCTAVE RANGE |
H910 H949 |
|
24 CORRIDORS |
HALL |
|
25 RAMPCHOPPER |
TREMOLOPAN |
|
26 FOUNDIT |
VINTAGE DELAY |
|
27 IRONWORX |
SHIMMER |
|
28 GHOSTHUNTER |
ULTRATAP |
|
29 SEAGULLS |
CRYSTALS |
|
30 PULSATING |
CHORUS |
|
31 CLASSIC SLAP |
TAPE ECHO |
|
32 AREYOUTHERE |
CRYSTALS |
|
33 DARK CAVE |
HALL |
|
34 SQUARE CHOPPER |
TREMOLOPAN |
|
35 LONG VINTAGE H9 |
VINTAGE DELAY |
|
36 TOUCHED BY AN H9 |
SHIMMER |
|
37 MOSQUITO |
ULTRATAP |
|
38 DISAPPEARING HAL |
ULTRATAP |
|
39 70S GUITAR CHORU |
CHORUS |
|
40 RECORD HEAD |
TAPE ECHO |
|
41 POWERCHORD |
H910 H949 |
|
42 DELAYEDPLATE |
HALL |
|
43 HELLS GATE |
SHIMMER |
|
44 VINTAGE VOCAL |
VINTAGE DELAY |
|
45 SIZE MATTERS |
SHIMMER |
|
46 STUTTER |
ULTRATAP |
|
47 STEAMPUNK |
CRYSTALS |
|
48 CHORUS BUMPS |
CHORUS |
|
49 BE WOWED |
TAPE ECHO |
|
50 SHATTER |
H910 H949 |
|
51 CARNEGIE HALL |
HALL |
|
52 SPECIAL AGENT FA |
TREMOLOPAN |
|
53 ROTTEN OLD DELAY |
VINTAGE DELAY |
|
54 SNEAKY VERB |
SHIMMER |
|
55 SLOWING DOWN |
ULTRATAP |
|
56 FROM A BAD DREAM |
CRYSTALS |
|
57 LIQUID SWEETENER |
CHORUS |
|
58 MULTI SLAP |
TAPE ECHO |
|
59 PHOTON BEAM |
H910 H949 |
|
60 DOOM CHAMBER |
HALL |
|
61 ULTRASWELL |
ULTRATAP |
|
62 LO-REZ TRAIL |
VINTAGE DELAY |
|
63 QUASAR |
SHIMMER |
|
64 ZIPPERVERB |
ULTRATAP |
|
65 REVERSE DETUNE E |
CRYSTALS |
|
66 BIG CLONE |
CHORUS |
|
67 REELTOREEL |
TAPE ECHO |
|
68 INSANITY BUILD |
H910 H949 |
|
69 PHANTOM VERB |
HALL |
|
70 FLUTTER TREM |
TREMOLOPAN |
|
71 SLAPVINTAGE |
VINTAGE DELAY |
|
72 DARK ANGELS |
SHIMMER |
|
73 CHOPHALL |
ULTRATAP |
|
74 PITCH A LA V |
CRYSTALS |
|
75 CLASSIC CHORUS |
VINTAGE DELAY |
|
76 FLUTTERWOW |
TAPE ECHO |
|
77 RISING SWIM |
H910 H949 |
|
78 VAPOR TRAIL |
HALL |
|
79 PULSING TREM |
TREMOLOPAN |
|
80 LONG OLD DELAYS |
VINTAGE DELAY |
|
81 NEROS ASCENT |
SHIMMER |
|
82 SIX PULSING |
ULTRATAP |
|
83 REVERSELOWS |
CRYSTALS |
|
84 HUH FLANGE |
ULTRATAP |
|
85 UBETTERRUN |
VINTAGE DELAY |
|
86 BACKING VOCAL |
H910 H949 |
|
87 PANOROMANCE |
HALL |
|
88 PANNING TREMO |
TREMOLOPAN |
|
89 NICE OLD ECHOES |
VINTAGE DELAY |
|
90 GUNSHOT SNARE |
SHIMMER |
|
91 FOLLOW ME |
ULTRATAP |
|
92 CLOCKWORX |
ULTRATAP |
|
93 NANO STUDDER |
ULTRATAP |
|
94 TAPEDRONE |
TAPE ECHO |
|
95 WEIRDBASS |
CRYSTALS |
|
96 SYNTH GHOSTS |
ULTRATAP |
|
97 BULLFROG |
ULTRATAP |
|
98 TAPSLAP |
ULTRATAP |
|
99 GLITCHTRIGGER |
ULTRATAP |
