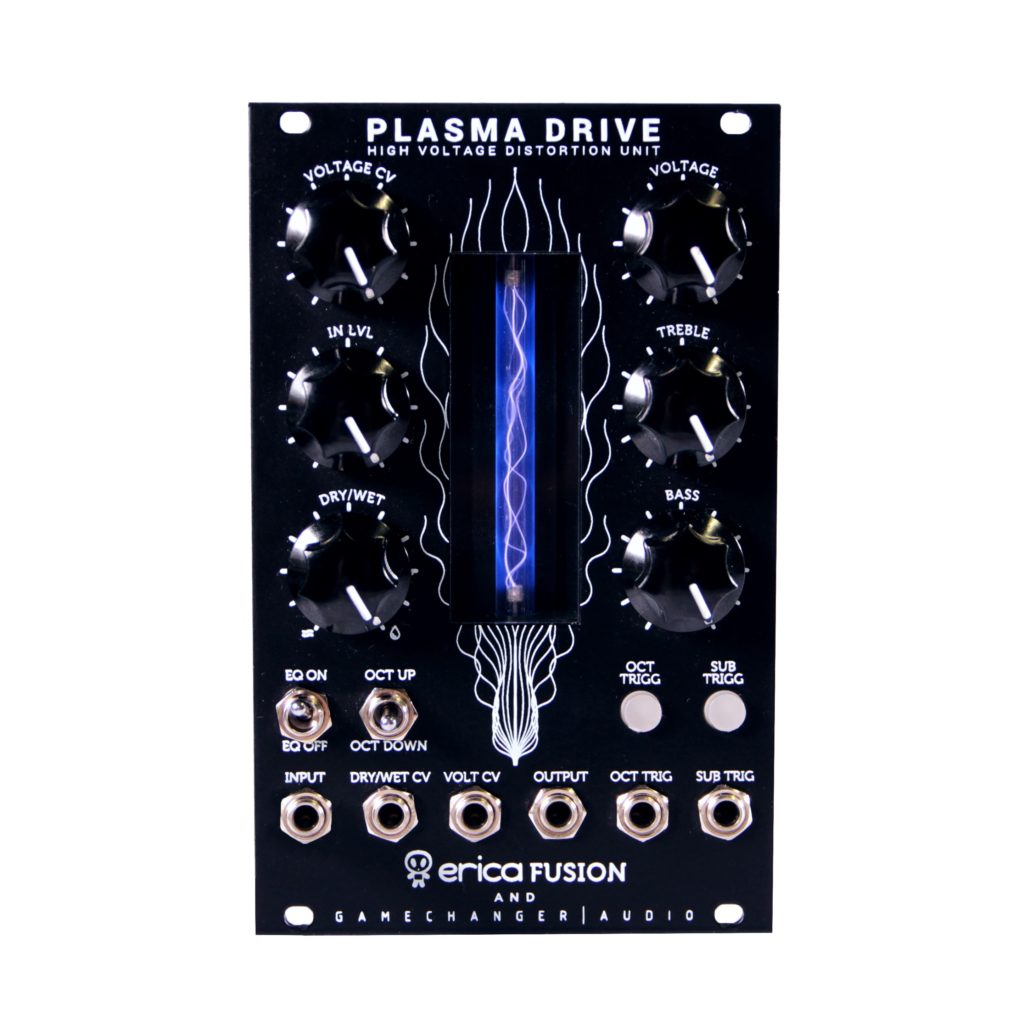

Gamechanger Audio Plasma Drive Eurorack
PLASMA eurorack module “PLASMA Drive” is a collaboration between Gamechanger Audio and Erica Synths, an established and recognized modular synthesizer brand from Latvia. Erica Synths are a team of visionaries, engineers and musicians who create modules and instruments that are different in terms of sound, looks and functions.
Similar to PLASMA Pedal, the PLASMA Eurorack Drive boosts audio signal to 3000V and transforms it into a series of continuous high-voltage discharges in a xenon-filled tube. In essence – you are playing a lightning bolt of electricity, and the electrical discharges produced by your instrument are instantly converted back into an analogue audio signal. The result – a quick, responsive, and extremely heavy distortion with tons of unique character!
The PLASMA Drive Eurorack Module brings the sounds of the PLASMA Pedal to the modular world. The functions of the pedal are complemented with CV control over the level of distortion and a dry/wet mix. The Module introduces tracking oscillators for a new Octave Up & Two-Octave Down function, thus adding even more harmonics to the original signal. Tracking oscillators can be switched on/off manually or via trigger signals. The PLASMA Drive module is powered with conventional eurorack PSU ribbon cable and the power consumption is around 250mA.
-CV control over distortion and dry/wet mix
-Assignable equalizer (pre- and post- effect)
-1 Octave up and 2 Octave down tracking oscillators
|Audio input level up to 20V ptp
||up to 20V ptp
|EQ low freq boost/cut ±9dB, 600Hz corner freq.
||±9dB, 600Hz corner freq.
|EQ hi freq boost/cut ±10dB, 1.5kHz corner freq.
||±10dB, 1.5kHz corner freq.
|CV input level -10V – +10V
||-10V – +10V
|Panel width 16HP
|Peak power consumption 200mA@+12V,100mA@-12V
