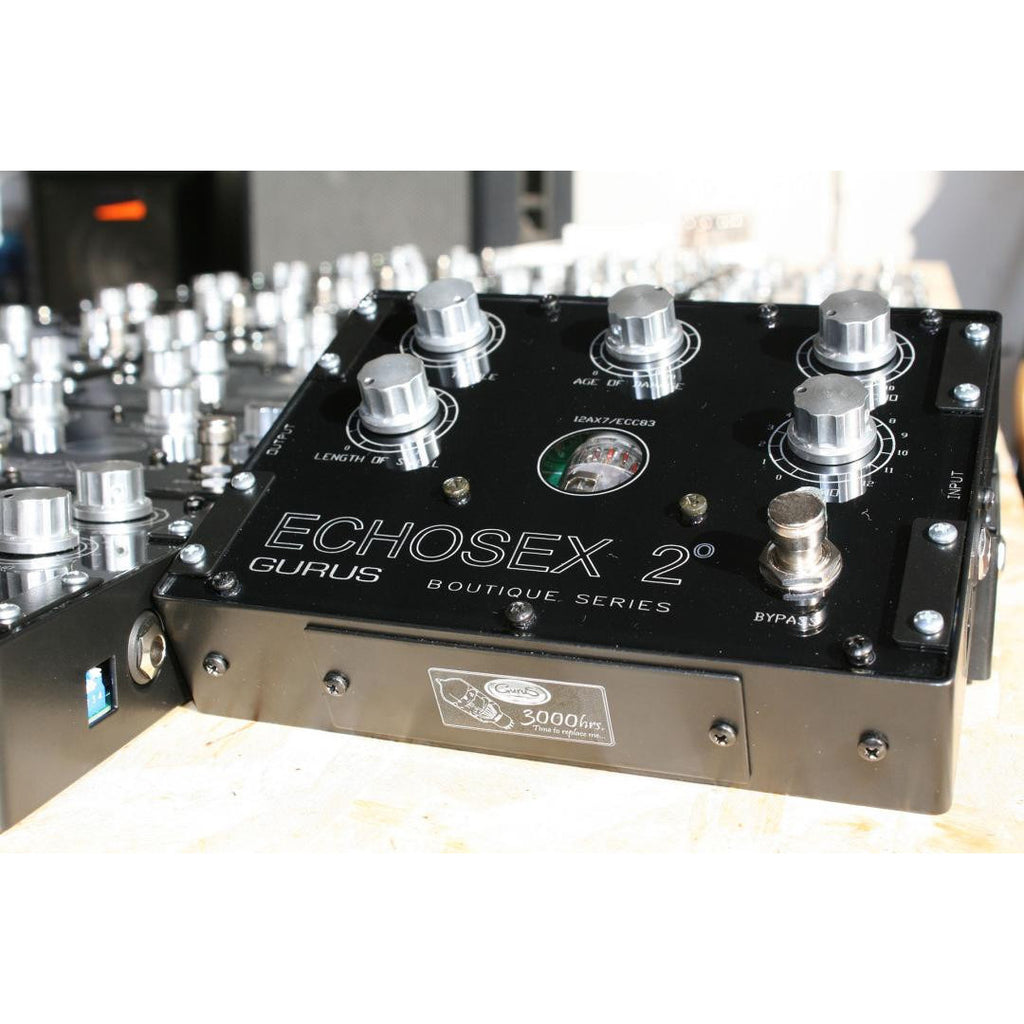

ECHOSEX 2 is the Gurus Amps Reissue of the legendary BINSON ECHOREC the notorious Echo unit world-wide known
and brought to celebrity by artists like Pink Floyd which became its embodiment. This is not just a re-run.
We decided to make our up-to-date interpretation without affecting its features but fixing, thanks to the modern
technologies, some limits of the original machine like:
We realized the device in a stompbox format, sized for being comfortably placed in a pedalboard.
There is no mechanical part in need of maintenance.
The delay time can be set from 60 to 660ms.
The signal path is fully analog and tube-state, we recreate that Òbinson SystemÓ made of
Tube Preamp/Head Simulation/Filters.
|Power In||9-12VDC Max.|
|Input Impedance||<1M Ohm|
|Input Level||1,2 Vpp Max.|
|Output Impedance||<100K Ohm|
|Mix Level||50% max.|
|Tube Type||12AX7B Gurus|
Connections. Thanks to the dip-switches on side panel, you can set in&out levels from -10db to +4 as in the original
Binson Echorec, to better fit high output humbuckers, active guitars, active bass, keyboards, drum, mic preamp and
whatever you want to plug into; and programming the bypass button to choose if you want its stops delays or fade out
when bypass it.
Every original Binson was unique, because of the different wearing of the mechanical parts based on their usage. This led to a very specific feature: when the mechanical parts were worn, especially the rubber wheel pushing the
disc, a sort of modulation in the delay time arouse. For Binson-sound lovers, that was a really distinctive and sought after
feature so, we replicated and synthetized that peculiarity in ECHOSEX 2 with a single control called "Age Of Damage" a
ccording to the nice and genuine Binson naming. Tone control only affects repeats, in conjunction with the feedback control
which sets quantity up to an endless self-oscillating level and works on the brightness of each repeat, just like the original
This thing is a real "creativity machine" a fascinating device that catches you from the very first notes thanks to the warmth
of its tone, the authenticity of its character and the creative opportunities it offers acting on the controls.
