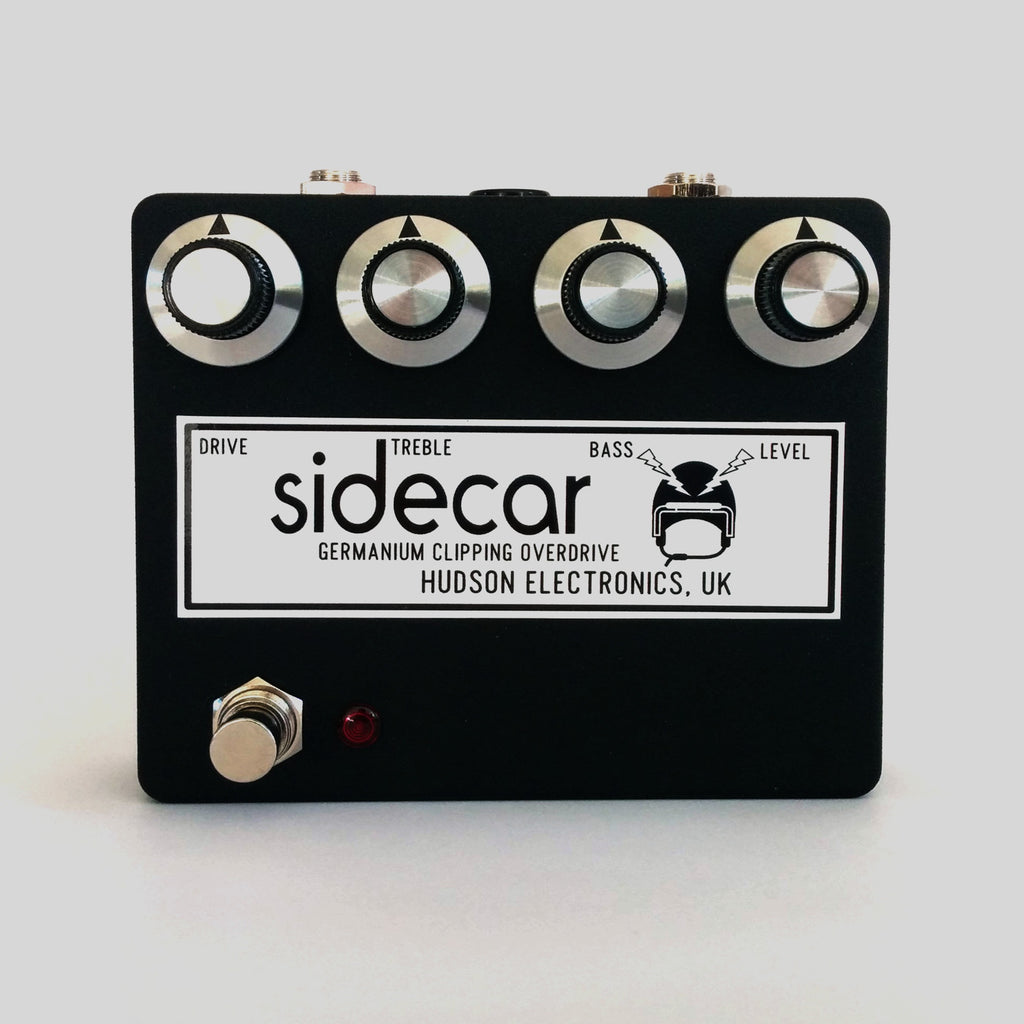

Hudson Electronics UK Sidecar The Sidecar is Hudson's take on the classic 808 circuit with the added versatility of a powerful two-band EQ which draws inspiration from a vintage Studer recording console. Packed with attitude and full of character, the Sidecar can cover classic overdrive and distortion as well as (at extreme settings) fuzz and boost.
The front end of the Sidecar is a modified version of the classic 808 overdrive, tuned for a bigger low-end, wider gain range and greater headroom. At the heart of the clipping section lies a NOS germanium transistor chosen for its ‘softer’ response characteristics, retaining your playing dynamics and feel.
The powerful two-band Baxandall equaliser section follows the drive section and provides up to 15dB of cut and boost of the high and low bands, allowing you to sculpt your tone while remaining musical at all times. Features
- High-Performance, High-Fidelity Audio Operational Amplifier
- Hand selected NOS Germanium transistor
- Alpha / BI potentiometers
- Neutrik jack sockets
- Heavy duty foot switch
DRIVE – Regulates how hard the pedal is driven.
BASS – Adjusts the low end content of the signal.
TREBLE – Adjusts the high end content of the signal.
LEVEL – Sets the overall output level. Specifications:
TREBLE EQ: +/- 15 dB at 8800 Hz (shelving)
BASS EQ: +/- 15 dB at 85 Hz (shelving) Power:
A standard 9-24 volt DC regulated power supply with a 2.1mm negative tip barrel plug. Running at higher voltages will give you more headroom, less distortion and less compression and sag. This is perfect for use on bass, baritone and low tuned guitars.
Current Draw: 10mA Dimensions:
(including knobs and jacks)
120 x 100 x 55 mmFull two year Warranty
