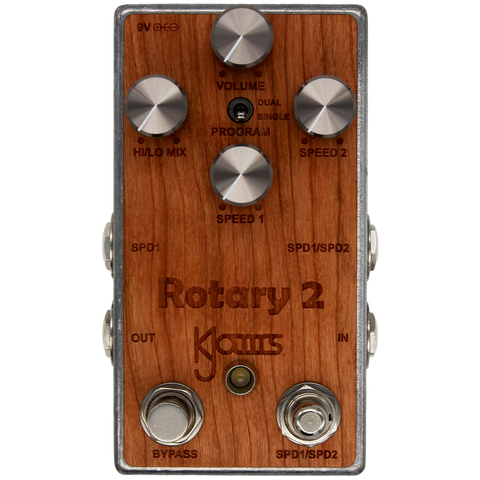

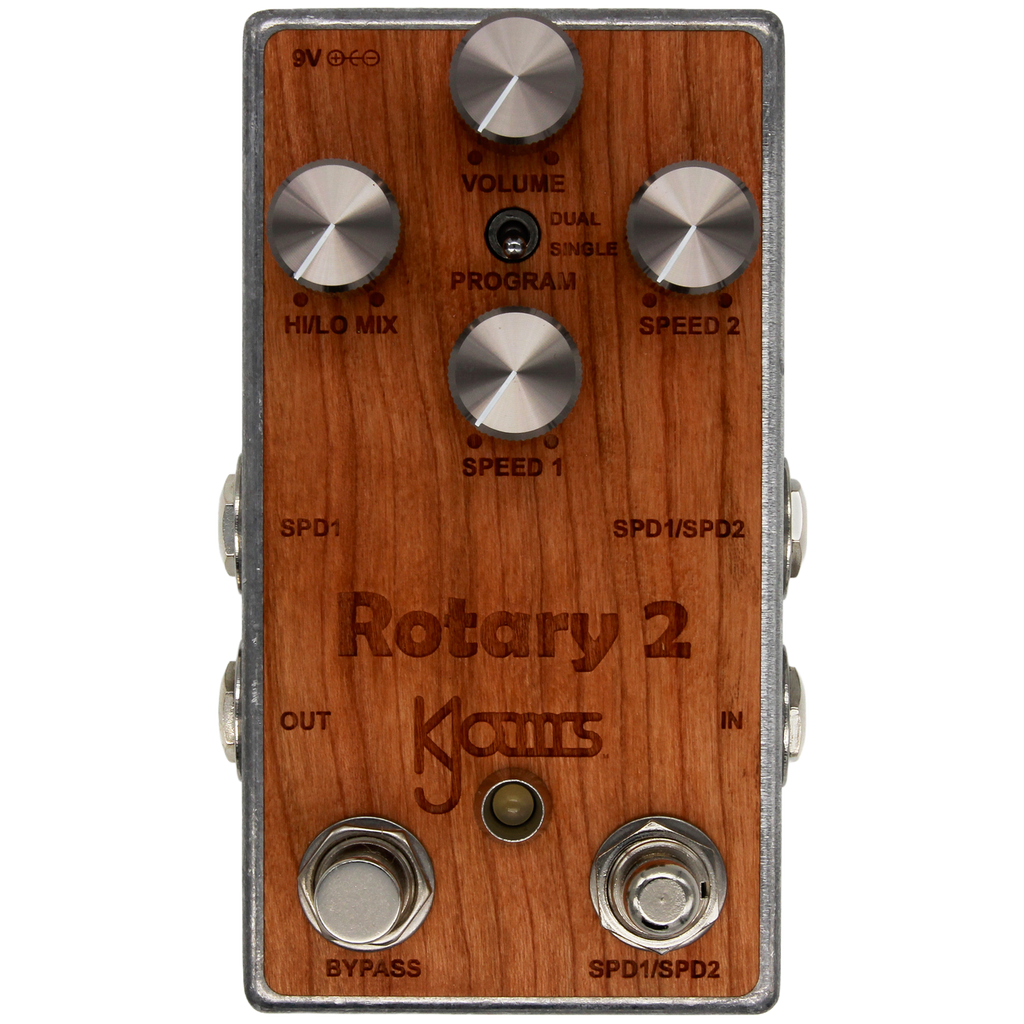

KJams Rotary 2

A dual speed rotary simulator! This pedal features true bypass, built-in speed switch, external speed switch input, external expression pedal input, output level control, real wood control panel, and three program control pots. The pedal is based on the Spin FV-1 DSP chip. It is designed and assembled in Holland, Michigan, USA.


The Rotary 2 pedal has two PROGRAMS, selectable by the toggle switch:
-Single (down) - Rotary with two Speed controls and Horn/Woofer mix control.
-Dual (up) - Rotary with two Speed controls, Horn/Woofer mix control, and a second Horn (makes it chorus-y)

FOOTSWITCHES
-Bypass is a standard bypass/enable latching switch.
-Spd1/Spd2 toggles the rotary speed between the settings on the two Speed controls. See below.

POTS
-Speed controls
--The two Speed controls set the maximum and minimum speeds.
--Which Speed control is currently active is set by the Spd1/Spd2 switch.
--If Speed 1 control is set lower than Speed 2, pressing the Spd1/Spd2 switch will cause the speed to gradually change from one speed setting to the other.
--If Speed 1 is set higher than Speed 2, pressing the Spd1/Spd2 switch will cause the speed to immediately change from one speed setting to the other.
-Hi/Lo Mix is the mix of the horn and woofer. It acts similar to a tone control.
-Volume controls output level.

JACKS
-In and Out jacks are standard mono, right to left.
-Spd1/Spd2 external input functions in parallel with and exactly like the Spd1/Spd2 footswitch.
-Expression replaces the middle/lower control, Speed 1.
--If the last tap on Spd1/Spd2 has set the pedal to Speed 1 control, the Expression pedal controls the speed.
--If the last tap on Spd1/Spd2 has set the pedal to Speed 2 control, the Expression pedal does not control the Speed until Spd1/Spd2 is pushed again.

POWER
-Input power is standard center-negative 9VDC.
-The pedal draws 62mA.
-The pedal is safe with higher voltages, up to 18VDC, but using higher voltages will not affect the sound, and we discourage using them.
