Rabbit Hole FX Merkin Fuzz

Rabbit Hole FX

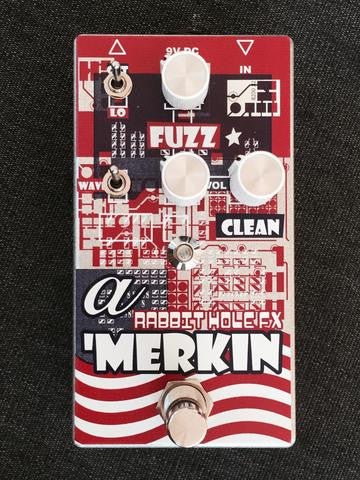

Rabbit Hole FX Merkin Fuzz


The 'Merkin Fuzz offers sustain for miles and allows precise, fine-tuning to your instrument and rig via 3 Knobs and 2 Switches:

Fuzz Section: (4 Controls)

  • Cut/Low switch - Cut is a frequency contour that attenuates lower frequencies in the fuzz stage. Low gives the output from the fuzz a flatter frequency response. Cut/Low switch affects only the fuzz section, not clean.

  • "Nancy" (top knob) - Fuzz sustain/gain.

  • Wave switch - Up position is off. Down position adds an octave effect that gives more sustain/gain. Wave switch affects only the fuzz section, not clean.

  • "Unclean" volume (lower left knob) - Adjusts the fuzz output volume.


Volume Section: (2 knobs)

  • "Unclean" volume - Adjusts the fuzz output volume.

  • Clean volume - Adjusts the clean output volume. Can be used independently of the fuzz section as a clean boost/cut. 12 o'clock is approximately unity gain. Can be used in conjunction with fuzz to fill in the bottom end for thick warm fuzz.


Other features include:

  • Top-mounted input/output/power jacks

  • Industry standard 2.1mm 9v DC center negative power input jack and negative ground operation (no battery option)

  • Small 125B sized pedal board friendly enclosure

  • Carling soft-switching relay-based True Bypass footswitch

  • White LED indicator with internal trimpot to adjust brightness.

  • Durable and high resolution DTS (direct to substrate) labeling and art

  • High quality parts used throughout for superior noise-free performance.

  • A red satin multi-purpose swag bag.

  • 2 year builder warranty from date of sale. Contact RHFX for details.
